Specs at a glance
-
Measured variables
Standard visual range, K-value
-
Measuring range
Standard visual range: 10 ... 500 m / 10 ... 16,000 m
Output range freely adjustable -
Ambient temperature range
–30 °C ... +55 °C
-
Degree of protection
IP69K
Field of application

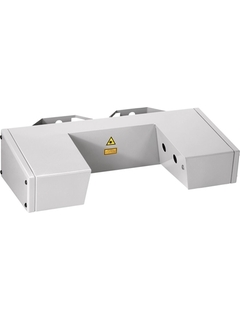

The VISIC620 determines the standard visual range on roads, sea routes, or in weather observation stations or measures the visibility (as k-value or in mg/m³) in tunnels. An automated self-test measures and compensates for possible front screen contamination. Furthermore, it offers excellent recognition of objects such as leaves or plants in the optical path. Therefore, the VISIC620 can measure fog reliably.
Determination of the visual range on roads
Measurement of visibility or dust concentration in tunnels
Detection of smoke in tunnels
Fog detection on coasts and sea routes
Device properties:
Large measuring range for visual range
Precipitation detector as an option
Contamination check
Minimum space requirements and low weight
Self-sufficient design possible with solar panel and battery
Rugged housing, also for salty air
Benefits
Reliable measured values
Low operating costs
Low maintenance requirements due to long maintenance intervals
