Digital pressure transmitter,
diaphragm seal.
Application: hygienic.
Linearity +/-0,2%, turndown 20:1.
Safety by function monitoring.
Modular transmitter design.
:: High reliability
Diaphragm welded.
Process connect.: oil volume minimized.
:: Minimized temperature effect
Vacuum: Comply with application limits!
-
Successor
-
Digital pressure transmitter with fully welded diaphragm seal for measurement in gases or liquids
-
Simple products
-
Easy to select, install and operate
Technical excellence
Simplicity
-
Standard products
-
Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
High-end products
-
Highly functional and convenient
Technical excellence
Simplicity
-
Specialized products
-
Designed for demanding applications
Technical excellence
Simplicity
FLEX selections |
Technical excellence |
Simplicity |
Fundamental selection
Meet your basic measurement needs
|
Technical excellence
|
Simplicity
|
Lean selection
Handle your core processes easily
|
Technical excellence
|
Simplicity
|
Extended selection
Optimize your processes with innovative technologies
|
Technical excellence
|
Simplicity
|
Xpert selection
Master your most challenging applications
|
Technical excellence
|
Simplicity
|
-
Characteristic / Application
Digital pressure transmitter with diaphragm seal for hygienic applications
Safety by function monitoring, modular transmitter design
-
Supply / Communication
4...20mA HART:
11,5...45V DC
Ex ia: 11,5...30V DC
Ex d[ia]: 13...30V DC
PROFIBUS PA /
FOUNDATION Fieldbus:
9...32V DC
Ex ia: 9...24V DC
-
-
-
-
-
Process pressure / max. overpressure limit
-
-
Main wetted parts
Ceraphire ceramic
Alloy C
316L
Tantal
PTFE-Foil
-
Process connection
Tri-Clamp
Hygienic connections
-
Max. measurement distance
-
Communication
4 ... 20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus
-
-
Options
digital display
SS- or Aluminumhousing
-

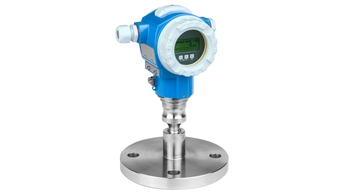

Successor
For hygienic applications refer to Deltapilot S and Cerbar M. Clamp, DIN 11851,DRD,ect. within PMP75
-
-
Characteristic
Digital pressure transmitter with diaphragm seal for hygienic applications
Safety by function monitoring, modular transmitter design
-
Supply voltage
4...20mA HART:
11,5...45V DC
Ex ia: 11,5...30V DC
Ex d[ia]: 13...30V DC
PROFIBUS PA /
FOUNDATION Fieldbus:
9...32V DC
Ex ia: 9...24V DC
-
-
-
-
-
-
-
Process connection
Hygienic connections
Clamp ISO2852
(Tri-Clamp compatible)
-
Communication
4..20mA HART
PROFIBUS PA
FOUNDATION Fieldbus
-
-
Successor
For hygienic applications refer to Deltapilot S and Cerabar M. Clamp, DIN11851, DRD, ect within PMP75
Most downloaded
-
Cerabar S Operating Instructions HART, Software version 7.1
English version - 01/2004
|
Cerabar S PMC631, PMC731, PMP635, PMP731, Pressure transmitter
|
EN
|
|
More
|
01/01/2004
|
|
|
|
01/03/2003
|
|
|
|
01/04/1999
|
|
|
|
Language:
|
English
|
Version:
|
01/01/2004
|
File size:
|
1.9 MB
|
File name:
|
BA187PEN.pdf
|
44 documents
-
Technical Information Cerabar S PMC 631, PMP 635.
Cerabar S with diaphragmseal
overload resistant with function monitoring. Communication using PROFIBUS-PA, HART,
INTENSOR
protocols.
|
EN
|
|
Select other language
|
01/05/1999
|
|
|
|
Language:
|
English
|
Version:
|
01/05/1999
|
File size:
|
1.4 MB
|
File name:
|
TI217PEN.PDF
|
-
Cerabar S Operating Instructions HART, Software version 7.1
Cerabar S PMC631, PMC731, PMP635, PMP731, Pressure transmitter
|
EN
|
|
Select other language
|
01/01/2004
|
|
|
|
01/03/2003
|
|
|
|
01/04/1999
|
|
|
|
Language:
|
English
|
Version:
|
01/01/2004
|
File size:
|
1.9 MB
|
File name:
|
BA187PEN.pdf
|
-
Cerabar S Operating Instructions PROFIBUS PA
Cerabar S PMC631, PMC731, PMP635, PMP731, Pressure transmitter
|
EN
|
|
Select other language
|
24/01/2004
|
|
|
|
Language:
|
English
|
Version:
|
24/01/2004
|
File size:
|
2.3 MB
|
File name:
|
BA168PEN.PDF
|
-
Cerabar S FOUNDATION Fieldbus Operating Instructions, Software version
0.3
Cerabar S PMP731, PMC731, PMC631, PMP635, Pressure transmitter
Language:
|
English
|
Version:
|
01/09/2004
|
File size:
|
1.7 MB
|
File name:
|
BA211PEN.PDF
|
-
Mounting bracket instructions Cerabar S.
Mounting bracket.
|
EN
|
|
Select other language
|
01/11/1995
|
|
|
|
Language:
|
English
|
Version:
|
01/11/1995
|
File size:
|
182.8 KB
|
File name:
|
KA013PA6.PDF
|
-
Cable kit instructions Cerabar S.
Cable Kit. Installation cable with pressure equalisation tube.
|
EN
|
|
Select other language
|
01/10/1998
|
|
|
|
Language:
|
English
|
Version:
|
01/10/1998
|
File size:
|
76.2 KB
|
File name:
|
KA097PA6.PDF
|
-
Safety Instructions
Cerabar S PMC631, PMC635, PMC731, PMP635, PMP731
FOUNDATION Fieldbus
II 1/2 G, II 2 G EEx ia IIC T6...T4
PTB 98 ATEX 2178 (ATEX)
|
EN
|
|
Select other language
|
01/02/2002
|
|
|
|
Language:
|
English
|
Version:
|
01/02/2002
|
File size:
|
269.5 KB
|
File name:
|
XA088PA3.PDF
|
-
Cerabar S PMC631, PMC635, PMC731
Approval No.: KEMA 97 ATEX 4466
ATEX II 2 G Protection: EEx d [ia] IIC T6
4...20 mA HART
|
EN
|
|
Select other language
|
01/02/2002
|
|
|
|
Language:
|
English
|
Version:
|
01/02/2002
|
File size:
|
261.1 KB
|
File name:
|
XA053PA3.PDF
|
-
Safety Instructions
Cerabar S PMC631, PMC635, PMC731, PMP635, PMP731
PROFIBUS PA
II 1/2 G, II 2 G EEx ia IIC T6...T4
PTB 98 ATEX 2178 (ATEX)
|
EN
|
|
Select other language
|
01/02/2002
|
|
|
|
Language:
|
English
|
Version:
|
01/02/2002
|
File size:
|
430.9 KB
|
File name:
|
XA004PA3.PDF
|
-
Cerabar S PMC631, PMC731, PMP635, PMP731
Approval No.: EG 01 012
ATEX II 3 G Protection: EEx nA II T6
4...20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus
|
EN
|
|
Select other language
|
01/02/2002
|
|
|
|
Language:
|
English
|
Version:
|
01/02/2002
|
File size:
|
252.5 KB
|
File name:
|
XA150PA3.PDF
|
Search spare parts by number in drawing
12 spare parts & accessories
12 spare parts
12 accessories
-
Blind plug, NPT1/2 h16.5 LD-PE
Drawing number
Order code
14
013990-0000
-
Blind plug, M20 h12/6, LD-PE
Drawing number
Order code
14
015797-2000
-
Blind plug, G1/2A h12/6 HD-PE
Drawing number
Order code
14
016137-0012
-
Adapter M26 > Pg13.5, AlMgSiP
Drawing number
Order code
16
919584-0000
-
Adapter M26 > M20, AlMgSiPb
Drawing number
Order code
16
919584-0001
-
Adapter M26 > NPT1/2, AlMgSiPb
Drawing number
Order code
16
919584-0002
-
Adapter M26 > G1/2, AlMgSiPb
Drawing number
Order code
16
919584-0003
-
Adapter M26 > NPT1/2, 304
Drawing number
Order code
16
919584-0012
-
O-ring 61,6 x 2,62 NBR 70 +PTFE
Drawing number
Order code
21
013982-0000
-
Mount.set, wall-/pipe-2", VA, lipht sep
-
-
