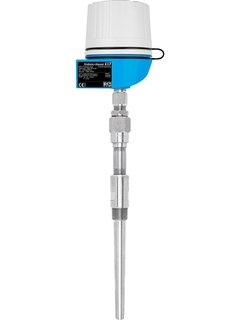

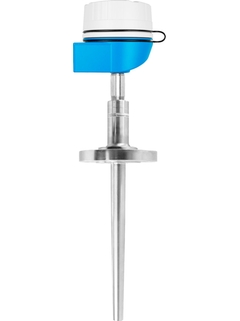

Product picture of resistance thermometer TR66

TR66
Explosion-proof Pt100 Thermometer

Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry

TR66
Please Wait (spinning wheel)
Indlæser pris
Priser er midlertidigt utilgængelige
Price on request
aktiverer pris
pris: information ønskes
from CHF ??.-

Oversigt over specifikationer

  • Accuracy

    class A acc. to IEC 60751
    class AA acc. to IEC 60751

  • Response time

    depending on configuration

  • Max. process pressure (static)

    at 20 °C: 500 bar (7.252 psi)

  • Operating temperature range

    PT100 TF iTHERM StrongSens:
    -50 °C ...500 °C
    (-58 °F ...932 °F)
    PT100 WW:
    -200 °C ...600 °C
    (-328 °F ...1.112 °F)
    PT100 TF:
    -50 °C ...400 °C
    (-58 °F ...752 °F)

  • Max. immersion length on request

    up to 5.000,00 mm (196,85'')

Anvendelsesområde

The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. Harsh environments, corrosive substances and highest pressures can be handled by the use of robust protection tubes and special materials. An optional head transmitter with all common communication protocols makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors.

  • Heavy duty applications

  • Oil & Gas processing industry

  • Measuring range: -200 to +600 °C (-328 to 1112 °F)

  • Static pressure range up to 100 bar (1450 psi)

  • Protection class: IP68

Fordele

  • Types of protection for use in hazardous locations: Intrinsic safety (Ex i.a.), flameproof (Ex d), non-sparking (Ex nA)

  • High degree of insert compatibility and design as per DIN 43772

  • Extension neck to protect the head transmitter from overheating

  • Fast response time with reduced/tapered tip form

  • High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths

  • Marine approval
