Oversigt over specifikationer
-
Accuracy
Class AA acc. to IEC 60751
Class A acc. to IEC 60751
Class B acc. to IEC 60751
Class special or standard acc. to ASTM E230
Class 1 or 2 acc. to IEC 60584-2 -
Response time
t90 starting at < 1,5 s iTHERM QuickSens
depending on configuration -
Max. process pressure (static)
depending on the configuration
-
Operating temperature range
PT100 TF iTHERM StrongSens:
-50 °C ...500 °C
(-58 °F ...932 °F)
PT100 TF iTHERM QuickSens:
-50 °C …200 °C
(-58 °F …392 °F)
PT100 WW:
-200 °C ...600 °C
(-328 °F ...1.112 °F)
PT100 basic TF:
-50 °C ...200 °C
(-58 °F ...392 °F)
Typ K:
max. 1.100 °C
(max. 2.012 °F)
Typ J:
max. 800 °C
(max. 1.472 °F)
Typ N:
max. 1.100 °C
(max. 2.012 °F) -
Max. immersion length on request
up to 180"
Anvendelsesområde

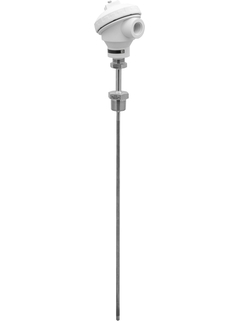

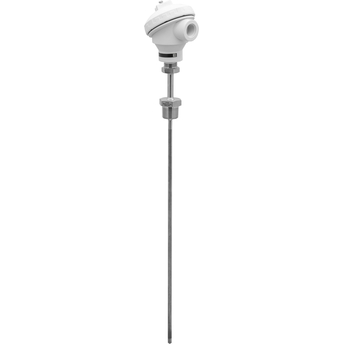

iTHERM ModuLine TM112 is an easy-to-use imperial direct contact modular thermometer, featuring outstanding RTD or TC sensor technology. It is suitable for every application, from basic functionality to high-end performance in the chemical, oil & gas and power & energy industries.
For universal use
Measuring range: –200 to +1 100 °C (–328 to +2 012 °F)
Pressure range: up to 75 bar (1 088 psi)
Fordele
User-friendly and reliable from product selection to maintenance
iTHERM inserts: full traceability and consistently high product quality for reliable measured values
iTHERM QuickSens: fastest response times of 1.5 s for optimum process control
iTHERM StrongSens: unsurpassed vibration resistance (> 60g) for ultimate plant safety
International certification: e.g. explosion protection according to ATEX, IECEx, CSA and INMETRO; functional safety (SIL)
iTEMP temperature transmitter with all common communication protocols and optional Bluetooth® connectivity
-
Standardprodukter
- Pålidelige og robuste med lav vedligeholdelse
Teknisk ydeevne
Enkelhed
-
Specialiserede produkter
- Designet til krævende applikationer
Teknisk ydeevne
Enkelhed
Variabel
| FLEX valg | Teknisk ydeevne | Enkelhed |
|---|---|---|
Fundamental Få dækket dine basale målebehov |
Teknisk ydeevne
|
Enkelhed
|
Lean Administrer nemt dine kerneprocesser |
Teknisk ydeevne
|
Enkelhed
|
Extended Optimer dine processer med innovative teknologier |
Teknisk ydeevne
|
Enkelhed
|
Xpert Til de mest udfordrende applikationer |
Teknisk ydeevne
|
Enkelhed
Variabel |
Loading alternative products
Succeshistorier
-
-
Tekniske oplysninger (TI)
TI iTHERM ModuLine TM112
Industrial modular thermometer
EN DA 01/05/2024Sprog:
Engelsk
Version:
01/05/2024
Filstørrelse:
2 MB
Filnavn:
TI01793TEN_0124-00.pdf
-
-
-
Betjeningsvejledning (BA)
BA iTHERM ModuLine-termometre
Universelle, modulopbyggede RTD/TC-termometre til en lang række industrielle anvendelser
EN DA 30/11/202431/08/2018Sprog:
Dansk
Version:
30/11/2024
Filstørrelse:
805.3 KB
Filnavn:
BA01915TDA_0224-00.pdf
-
-
-
Ex-sikkerhedsanvisning (XA)
iTHERM TM111, TM131 Control drawing CSA IS, NI, DIP
Thermometer
Installation Notes for hazardous locations
Intrinsically safe, Nonincendive, Dust ignition proofSprog:
Engelsk
Version:
17/09/2024
Filstørrelse:
449.6 KB
Filnavn:
XA01976TEN_05.24.pdf
-
-
-
Ex-sikkerhedsanvisning (XA)
TM111, TM131, TM611: cCSAus XP DIP NI
TM111, TM131: cCSAus XP DIP NI
Sprog:
Engelsk
Version:
27/01/2025
Filstørrelse:
1.7 MB
Filnavn:
XA01961T_04.25.pdf
-
-
-
Ex-sikkerhedsanvisning (XA)
XA iTHERM TM111, TM112, TM131, TM151, TM152, TS111, TS211, TS212
Thermometers and inserts
Ex ia IIC T1...T6 Ga
Ex ia IIC T1...T6 Ga/Gb
Ex ia IIIC T<sub>200</sub>85 °C...T<sub>200
</sub>450 °C Da/DbEN DA 12/07/202428/06/202327/04/202331/10/202231/07/2020Sprog:
Engelsk
Version:
12/07/2024
Filstørrelse:
578 KB
Filnavn:
XA02110TEN_0524-00.pdf
-
-
-
Innovation (IN)
Komplexität reduzieren, Einfachheit erreichen.
iTHERM ModuLine – einfach konfigurierbar für Ihre Bedürfnisse.
Sprog:
Tysk
Version:
25/02/2025
Filstørrelse:
2 MB
Filnavn:
IN01360T09DE.pdf
-
-
-
Innovation (IN)
Reduce complexity, achieve simplicity.
iTHERM ModuLine — easily configurable
to your needs.Sprog:
Engelsk
Version:
17/12/2024
Filstørrelse:
2 MB
Filnavn:
IN01360T09EN.pdf
-
-
-
Producenterklæring
Product family: Process RTD general purpose
Product root: TM101-, TM111-, TM112-, TM121-, TM131-, TM151-, TM152-
Declaration number: TM1X1 SUPPLIERS DOC
Manufacturer specification: RoHS, Explosion protection, EMC
Additional information: ACMA, AustraliaSprog:
Engelsk
Version:
12/04/2024
Filstørrelse:
149.4 KB
Filnavn:
TM1x1 Suppliers Dec of Conformity_240412.pdf
-
-
-
EU-erklæring
Product family: Low cost RTD general purpose, Process RTD direct contact, Process RTD direct in contact, Process RTD general purpose , Process RTD heavy duty, Process RTD hygienic, Process TC direct contact, Process TC direct in contact, Process TC general purpose, Process TC heavy duty, RTD thermometer, TC heavy duty
Product root: TAF11-, TAF12D-, TAF12S-, TAF12T-, TAF16-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC42
0-, TH11-, TH12-, TH13-, TH14-, TH15-, TH17-, TH18-, TH27-, TH51-, TH52-, TH53-, TH54-, TH55-, TH56-, TM101-, TM111-, TM112-, TM121-
, TM131-, TM151-, TM152-, TM401-, TM402-, TM411-, TM412-, TM611-, TMT142C-, TMT142R-, TMT162C-, TMT162R-, TR10-, TR11-, TR12-, TR13-
, TR15-, TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TSM187-, TSM487-, TST18
7-, TST310-, TST40N-, TST410-, TST414-, TST41N-, TST434-, TST434B-, TST487-, TST602-, TST90-
Declaration number: EC_00136_04.24EN DA 20/02/2024Sprog:
Engelsk
Version:
20/02/2024
Filstørrelse:
150.6 KB
Filnavn:
EC_00136_04.24.pdf
-
-
-
Eksplosionsbeskyttelse
Product family: Accessories: Inserts, Process RTD general purpose
Product root: TM111-, TM112-, TM131-, TM151-, TM152-, TS111-, TS211-, TS212-
Region: Brazil
Approval agency: TÜV
Protection: Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C Da/DbSprog:
Portugisisk
Version:
25/09/2024
Filstørrelse:
1.6 MB
Filnavn:
TUEV 24.0326 X_TUEV 23.1174 X.pdf
-
