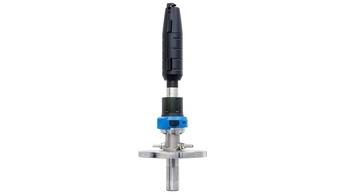

Afløser
Flexible process assembly for the water & wastewater and chemical industries
Yderligere information
Enkle produkter
Nemme at vælge, installere og betjene
Teknisk ydeevne
Enkelhed
Standardprodukter
Pålidelige og robuste med lav vedligeholdelse
Teknisk ydeevne
Enkelhed
Avancerede produkter
Funktionelle og praktiske
Teknisk ydeevne
Enkelhed
Specialiserede produkter
Designet til krævende applikationer
Teknisk ydeevne
Enkelhed
FLEX valg
Teknisk ydeevne
Enkelhed
Fundamental
Få dækket dine basale målebehov
Teknisk ydeevne
Enkelhed
Lean
Administrer nemt dine kerneprocesser
Teknisk ydeevne
Enkelhed
Extended
Optimer dine processer med innovative teknologier
Teknisk ydeevne
Enkelhed
Xpert
Til de mest udfordrende applikationer
Teknisk ydeevne
Enkelhed
Application
Water, waste water, process
Characteristic
Open and closed tank, piping (min. DN80)
Design
- manual or pneumatic, can be fully automated with CPC30 / 310 - integrated rinse chamber with connection G1/4" or NPT1/4".
Material
Assembly: Stainless steel 1.4404 Sealing : different material available
Dimension
Immersion depth: 66 - 208 mm (2.57 inch - 8.11 inch)
Process temperature
max. 80 bzw. 140°C (176°F or 284°F)
Process pressure
max. 4,6 / 10 bar (58 psi, 87 psi or 145 psi)
Connection
DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50.
Additional certifications
Application
Water, waste water, process
Characteristic
Open and closed tank, piping (min. DN80)
Design
- manual or pneumatic, can be fully automated with CPC30 / 300.- integrated rinse chamber with connection G1/4" or NPT1/4".
Material
Holder : Stainless steel 1.4404Sealing : different material available
Dimension
Immersion deepth : 66 - 208mm
Connection
DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50.
Additional certifications

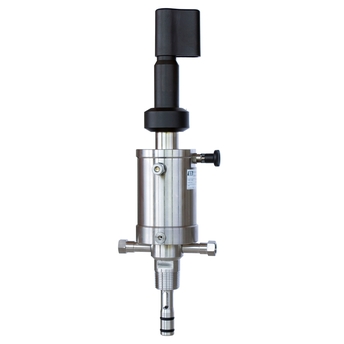

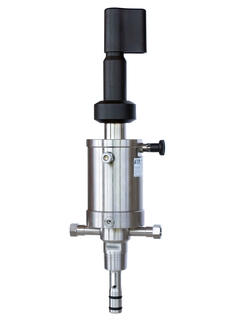

Application
Water, waste water, process
Characteristic
Retractable holder.Open and closed tank, piping (min. DN80)
Design
- manual or pneumatic, can be fully automated with CPC30 / 300.- integrated rinse chamber with connection G1/4" or NPT1/4".
Material
Holder : Stainless steel 1.4404Sealing : different material available
Dimension
Immersion depth : 66 - 208mm ( 2.57inch - 8.11inch)
Process temperature
max. 80 bzw.140°C ( 176°F or 284°F)
Process pressure
max. 4,6 bzw.10bar ( 58psi, 87psi or 145psi)
Connection
DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50.
Additional certifications
4 dokumenter
Technical Information Cleanfit CPA471
Assembly
EN
DA
Tysk French Italiensk Russisk Kinesisk
27/02/2012
01/10/2007
01/06/2002
Sprog:
Engelsk
Version:
27/02/2012
Filstørrelse:
870.5 KB
Filnavn:
TI217CEN_1312.pdf
Technical Information Topcal S CPC310
Fully automatic measuring, cleaningand calibration system in hazardous and non-hazardous areas
EN
DA
Tysk French Italiensk Polsk Russisk
22/07/2015
01/07/2006
Sprog:
Engelsk
Version:
22/07/2015
Filstørrelse:
2 MB
Filnavn:
TI00404CEN_1315.pdf
Operating Instructions CleanFit P CPA471
Retractable Process Assembly
EN
DA
Tjekkisk Tysk French Italiensk Russisk
27/02/2012
01/12/2007
01/07/2003
01/03/2000
Sprog:
Engelsk
Version:
27/02/2012
Filstørrelse:
1.2 MB
Filnavn:
BA217CEN_1312.pdf
SD CleanFit Servicekits / Spare part kits
CleanFit Wechselarmaturen / Retractable assemblies
Sprog:
Engelsk
Version:
01/07/2003
Filstørrelse:
1.6 MB
Filnavn:
Sd096ca2.pdf
Søg i reservedele efter nummer på tegning
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
Kit CPA471/472/475: Retr. pipe KCl pneum
Kit CPA471/472/475:Retr. pipe KCl manual
KIT CPA 471/472 retr.pipe Gel pn.short
KIT CPA471/472 shaft pneum long
KIT CPA471/472 retr.pipe Gel hand short
KIT CPA471/472 lift tube gel hand long
KIT CPA471 electr. guide compl. short
KIT CPA471 electr. guide compl. long
KIT CPA47x pneu.connection G1/8 AD6 10p
KIT CPA47x:stop bolt with handle (1 pc.)
KIT CPA47x airflow throttle+dummyplug SS
KIT CPA47X: Throttel check valve
KIT CPA47x: sealing plug M12x1 (10 pcs.)
KIT CPA471/472 cyl.screw M6x30 20 pieces
KIT CPA471/472 cyl. screw M6x45 20 pcs.
KIT CPA471 rinse housing STA G11/4 O.SP
KIT CPA471 rinsing housing STA G11/4
KIT CPA471 rinse housing STA NPT1.0
KIT CPA471 rinse housing STA NPT1 G1/8
KIT CPA471 rinse housing standard flange
KIT CPA471 rinse housing st.flange G1/8
KIT CPA471/472 cylinder PA short
Kit CPA471/472: PA cylinder long
KIT CPA471 cylinder ss short
KIT CPA471 long+474 short: Cylinder SS
Pneum. proxim. switches f.retrofitting
KIT CPA47x electr. proxim.switches
KIT CPA471 flange DN50 with raised face
KIT CPA471 flange ANSI2 with raised face
CPA471...5 all seals w/o medium contact
EPDM O-ring set, standard for CPA471
FPM O-ring set, standard for CPA471
Kalrez O-ring set, standard for CPA471
Splash protection cap for assemblies
Kit Sensor output interface
