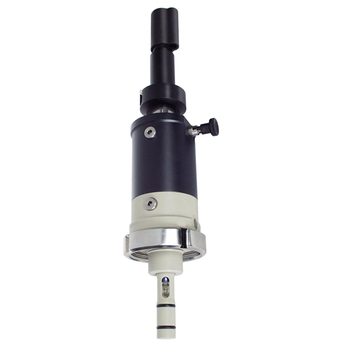

Flexible process assembly for the water & wastewater and chemical industries
Yderligere information
Enkle produkter
Nemme at vælge, installere og betjene
Teknisk ydeevne
Enkelhed
Standardprodukter
Pålidelige og robuste med lav vedligeholdelse
Teknisk ydeevne
Enkelhed
Avancerede produkter
Funktionelle og praktiske
Teknisk ydeevne
Enkelhed
Specialiserede produkter
Designet til krævende applikationer
Teknisk ydeevne
Enkelhed
FLEX valg
Teknisk ydeevne
Enkelhed
Fundamental
Få dækket dine basale målebehov
Teknisk ydeevne
Enkelhed
Lean
Administrer nemt dine kerneprocesser
Teknisk ydeevne
Enkelhed
Extended
Optimer dine processer med innovative teknologier
Teknisk ydeevne
Enkelhed
Xpert
Til de mest udfordrende applikationer
Teknisk ydeevne
Enkelhed
Application
Water, waste water, process
Characteristic
Open and closed tank, piping (min DN80)
Design
- manual or pneumatic, can be fully automated with CPC30 / 310 - integrated rinse chamber with connection G1/4" or NPT1/4"
Material
Holder: PP, PEEK, PVDF sealing : different material available.
Dimension
Immersion depth: 66 - 215 mm (2.57 inch - 8.38 inch)
Process temperature
max. 60 or 80°C (140°F or 176°F)
Process pressure
max. 4 or 6 bar (58 psi or 140°F)
Connection
Thread G1, 25" external; thread NPT1 "external; flange DN50/ASME2", dairy fitting DN50.
Application
Water, waste water, process
Characteristic
Open and closed tank, piping (min DN80)
Design
- manual or pneumatic, can be fully automated with CPC30 / 310.- integrated rinse chamber with connectionG1/4" or NPT1/4"
Material
Holder : PP, PEEK, PVDFSealing : different material available.
Dimension
Immersion depth : 66 - 215mm (2.57inch - 8.38inch)
Process temperature
max. 60 or 80°C (140°F or 176°F)
Process pressure
max. 4 or 6bar ( 58psi or 140°F)
Connection
Thread G1,25"external; thread NPT1"external; flange DN50/ASME2", dairy fitting DN50.
Application
Water, waste water, process
Characteristic
- Retractable holder- Open and closed tank, piping (min DN80)
Design
- manual or pneumatic, can be fully automated with CPC30 / 300.- integrated rinse chamber with connectionG1/4" or NPT1/4"
Material
Holder : PP, PEEK, PVDFSealing : different material available.
Dimension
Immersion depth : 66 - 215mm (2.57inch - 8.38inch)
Process temperature
max. 60 or 80°C (140°F or 176°F)
Process pressure
max. 4 or 6bar ( 58psi or 140°F)
Connection
Thread G1,25"external; thread NPT1"external; flange DN50/ASME2", dairy fitting DN50.
5 dokumenter
Technical Information Topcal S CPC310
Fully automatic measuring, cleaningand calibration system in hazardous and non-hazardous areas
EN
DA
Tysk French Italiensk Polsk Russisk
22/07/2015
01/07/2006
Sprog:
Engelsk
Version:
22/07/2015
Filstørrelse:
2 MB
Filnavn:
TI00404CEN_1315.pdf
Technical Information
Cleanfit P CPA472
Retractable Process Assembly
EN
DA
Tysk French Italiensk Kinesisk
19/04/2012
01/01/2008
01/06/2002
Sprog:
Engelsk
Version:
19/04/2012
Filstørrelse:
743.6 KB
Filnavn:
TI00223CEN_1312.pdf
Operating Instructions
Cleanfit CPA472D
Retractable Process Assembly
EN
DA
Tjekkisk Tysk French Italiensk Japansk Polsk
08/10/2013
01/09/2010
01/05/2006
Sprog:
Engelsk
Version:
08/10/2013
Filstørrelse:
1.3 MB
Filnavn:
BA00403CEN_1313.pdf
Operating Instructions
Cleanfit P CPA472
Retractable Process Assembly
EN
DA
Tjekkisk Tysk Spansk French Italiensk
19/04/2012
01/01/2008
02/07/2003
01/03/2000
Sprog:
Engelsk
Version:
19/04/2012
Filstørrelse:
1018.4 KB
Filnavn:
BA00223CEN_1312.pdf
SD CleanFit Servicekits / Spare part kits
CleanFit Wechselarmaturen / Retractable assemblies
Sprog:
Engelsk
Version:
01/07/2003
Filstørrelse:
1.6 MB
Filnavn:
Sd096ca2.pdf
Søg i reservedele efter nummer på tegning
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
Kit CPA471/472/475: Retr. pipe KCl pneum
Kit CPA471/472/475:Retr. pipe KCl manual
KIT CPA 471/472 retr.pipe Gel pn.short
KIT CPA471/472 shaft pneum long
KIT CPA471/472 retr.pipe Gel hand short
KIT CPA471/472 lift tube gel hand long
KIT CPA472 electrode pipe PP short
KIT CPA472 electrode guide PVDF short
KIT CPA472 Pistion compl. PP long
KIT CPA472 Sensor guide long complete
KIT CPA472 electrode guide PEEK long
KIT CPA47x pneu.connection G1/8 AD6 10p
KIT CPA47x:stop bolt with handle (1 pc.)
KIT CPA47x: sealing plug M12x1 (10 pcs.)
KIT CPA472 air coil, dummy plug PP
KIT CPA47X: Throttel check valve
KIT CPA471/472 cyl.screw M6x30 20 pieces
KIT CPA471/472 cyl. screw M6x45 20 pcs.
KIT CPA472rinse housingG11/4 0.SPU PP
KIT CPA472rinse housingG11/4 0.SPU PV
KIT CPA472rinse housingG11/4 0.SPU PE
KIT CPA472 rinse housingG11/4 G1/4 PP
KIT CPA472RinsinghousingG11/4 G1/4 PV
KIT CPA472 rinse housingG11/4 G1/4 PE
KIT CPA472 rinse housing NPT 1.0 PP
KIT CPA472 rinse housing NPT1.0 PV
KIT CPA472 rinse housing NPT1 NPT1/4 PP
KIT CPA472rinse housingNPT1 NPT1/4 PV
KIT CPA471/472 cylinder PA short
KIT CPA473/474 cylinder PA short
Pneum. proxim. switches f.retrofitting
KIT CPA47x electr. proxim.switches
KIT CPA472 retrofit kit flange DN50PP
KIT CPA472 retrofit kit flange DN50PV
KIT CPA472 retrofit kit flangeANSI2 P
KIT CPA472 retrofit kit flangeANSI2PV
KIT CPA472 retrofit kit flangeANSI2PE
KIT CPA472 retrofit kit sl.nut RD78PP
KIT CPA472 retrofit kit sl.nut RD78PV
KIT CPA472 retrofit kit sl.nut RD78PE
CPA471...5 all seals w/o medium contact
FPM (Viton) O-ring set for CPA472
Kalrez O-ring set for CPA472
Kit CPA472/D: 20 pcs. O-ring ID14 W3 FPM
Tegningsnummer
Ordrekode
14-1
71090063
Kit CPA472/D: 2 pcs.O-ring ID14W3 KALREZ
Tegningsnummer
Ordrekode
14-1
71090065
Splash protection cap for assemblies
Kit Sensor output interface
