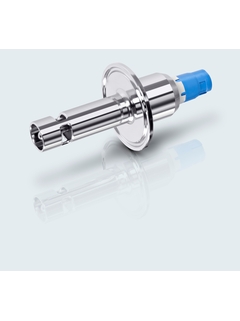

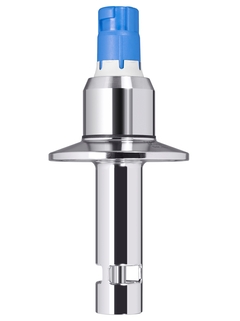

Memosens CLS16E - Digital, contacting conductivity sensor with certified hygienic design

Digital conductivity sensor
Memosens CLS16E

Memosens 2.0 contacting conductivity sensor for hygienic applications in life sciences and food

CLS16E
Indlæser pris
Priser er midlertidigt utilgængelige
Price on request
aktiverer pris
pris: information ønskes
from CHF ??.-
Memosens CLS16E - Digital, contacting conductivity sensor with certified hygienic design
  • F
  • L
  • E
  • X
©Endress+Hauser
Hygienic conductivity sensor for the life sciences and food industries
  • F
  • L
  • E
  • X
©Endress+Hauser

Oversigt over specifikationer

  • Measuring range

    k=0,1: 0,04 to 500 µS/cm

  • Process temperature

    -5 to 120 °C (23 to 248 °F)
    For Sterilizsation: max. 150 °C at 5 bar
    (Max. 302 °F at 73 psi)

  • Process pressure

    13 bar at 20 °C (188 psi at 68 °F)
    9 bar at 120 °C (130 psi at 248 °F)

Anvendelsesområde

Memosens CLS16E is a high-end conductivity sensor with certified hygienic design conforming to FDA and USP Class VI. It measures with highest precision delivering reliable data for optimum process and product quality. The sensor is robust and offers a long operating life thanks to its replaceable seal. With Memosens 2.0 technology, CLS16E is able to store more calibration and process data, facilitating predictive maintenance and providing the perfect basis for IIoT services.

Memosens CLS16E measures conductivity in pure and ultrapure water applications for the monitoring and control of:

  • Water for injection (WFI)

  • Electro-deionizing

  • Ion exchangers

  • Reverse osmosis

  • Distillation

With its international explosion protection approvals, such as ATEX, FM, CSA and NEPSI, the digital sensor is suitable for hazardous area use.

Fordele

  • Certified with quality certificate and EN 10204 3.1 and complying with EHEDG, USP Class VI, ASME and FDA, Memosens CLS16E is perfectly suited for hygienic applications in the life sciences and food industries.

  • The sensor is sterilizable and autoclavable, resists cleaning in place (CIP) and sterilization in place (SIP).

  • Stainless steel ensures robust, corrosion-free operation and the replaceable seal enables a long operating life.

  • Highest precision and measuring accuracy even at high temperatures and under pressure provide you with reliable data for optimum process and product quality.

  • Non-contact, inductive signal transmission ensures high process integrity.

  • IIoT ready: Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.

Videoer

  • The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.

  • Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

Extended
