Oversigt over specifikationer
-
Process temperature
-40 °C...+150 °C
(-40 °F...+302 °F) -
Process pressure / max. overpressure limit
Vacuum...40 bar
(Vacuum...580 psi) -
Min. density of medium
0.5 g/cm³
(0.4 g/cm³ optional)
Anvendelsesområde
Over 6 million installed Liquiphant point level switches in the field worldwide prove the day-to-day realiability of this device. With its active sensor technology you always be sure that your device is working correctly.
In addition there is no need of adjustment to different media.

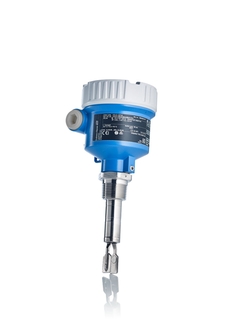

Point level switch with extension tube for all liquids.
Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)
Temperature: -40 to +150°C (-40 to +302°F)
Pressure: -1 to +40bar (-14.5 to +580psi)
Sensor material: 316L
International explosion protection certificates, WHG
Fordele
-
One measuring system for any liquid. Simple to use with plug and play functionality based on active sensor technology
-
Better long-term stability compared to float switches
-
Repeatability of switching point
-
Universal use in all pumpable liquids
-
No need of maintenance
Videoer
Lean
-
Standardprodukter
- Pålidelige og robuste med lav vedligeholdelse
Teknisk ydeevne
Enkelhed
-
Standardprodukter
- Pålidelige og robuste med lav vedligeholdelse
Teknisk ydeevne
Enkelhed
-
Specialiserede produkter
- Designet til krævende applikationer
Teknisk ydeevne
Enkelhed
Variabel
| FLEX valg | Teknisk ydeevne | Enkelhed |
|---|---|---|
Fundamental Få dækket dine basale målebehov |
Teknisk ydeevne
|
Enkelhed
|
Lean Administrer nemt dine kerneprocesser |
Teknisk ydeevne
|
Enkelhed
|
Extended Optimer dine processer med innovative teknologier |
Teknisk ydeevne
|
Enkelhed
|
Xpert Til de mest udfordrende applikationer |
Teknisk ydeevne
|
Enkelhed
Variabel |
Loading alternative products
Succeshistorier
Mest downloadede
-
-
Tekniske oplysninger (TI)
TI Liquiphant FTL41
Engelsk version - 09/2023
Vibronic
EN DA 30/09/202302/05/202225/01/202129/06/201901/04/2019Sprog:
Engelsk
Version:
30/09/2023
Filstørrelse:
1.2 MB
Filnavn:
TI01402FEN_0523-00.pdf
-
-
-
Betjeningsvejledning (BA)
BA Liquiphant FTL41
Engelsk version - 09/2023
Vibronic
EN DA 30/09/202302/05/202225/01/202129/06/201901/04/2019Sprog:
Engelsk
Version:
30/09/2023
Filstørrelse:
1 MB
Filnavn:
BA01893FEN_0523-00.pdf
-
86 dokumenter
-
-
Tekniske oplysninger (TI)
TI Weld-in adapter, process adapter and flanges
Level, pressure and temperature measurement
EN DA 06/12/202425/03/202415/09/202328/10/202130/07/2021Sprog:
Engelsk
Version:
06/12/2024
Filstørrelse:
1.3 MB
Filnavn:
TI00426FEN_2624.pdf
-
-
-
Tekniske oplysninger (TI)
TI Liquiphant FTL41
Vibronic
EN DA 30/09/202302/05/202225/01/202129/06/201901/04/2019Sprog:
Engelsk
Version:
30/09/2023
Filstørrelse:
1.2 MB
Filnavn:
TI01402FEN_0523-00.pdf
-
-
-
Betjeningsvejledning (BA)
BA Liquiphant FTL41
Vibronic
EN DA 30/09/202302/05/202225/01/202129/06/201901/04/2019Sprog:
Engelsk
Version:
30/09/2023
Filstørrelse:
1 MB
Filnavn:
BA01893FEN_0523-00.pdf
-
-
-
Kort anvisning (KA)
KA Liquiphant FTL41
Vibronisk
EN DA 30/09/202302/05/202225/01/202128/06/2019Sprog:
Dansk
Version:
30/09/2023
Filstørrelse:
872.8 KB
Filnavn:
KA01411FDA_0423-00.pdf
-
-
-
Installationsanvisninger (EA)
Electronic insert FEL4x Installation Instructions
Liquiphant FTL41
EN DA 15/11/201924/05/2019Sprog:
Engelsk
Version:
15/11/2019
Filstørrelse:
280 KB
Filnavn:
EA01259FEN_0219.pdf
-
-
-
Installationsanvisninger (EA)
EA Ground terminal
Gammapilot, Micropilot, Liquiphant
Cerabar, Deltabar, Prowirl LEN DA 28/03/202520/02/202325/05/2020Sprog:
Engelsk
Version:
28/03/2025
Filstørrelse:
465.5 KB
Filnavn:
EA01306FEN_0325-00.pdf
-
-
-
Installationsanvisninger (EA)
EA Cable gland M20x1.5
Gammapilot, Liquiphant, Micropilot
Cerabar, DeltabarEN DA 11/09/202327/01/202225/05/202006/02/202009/08/2019Sprog:
Engelsk
Version:
11/09/2023
Filstørrelse:
1.2 MB
Filnavn:
EA01262FEN_0623-00.pdf
-
-
-
Installationsanvisninger (EA)
EA M12 plug (housing side)
Gammapilot, Liquiphant, Micropilot
Cerabar, Deltabar, Prowirl LEN DA 28/03/202515/10/202426/09/202327/01/202225/05/2020Sprog:
Engelsk
Version:
28/03/2025
Filstørrelse:
1.5 MB
Filnavn:
EA01261FEN_0725-00.pdf
-
-
-
Installationsanvisninger (EA)
EA Cover, cover seal, cover securing screw
Gammapilot, Liquiphant, Micropilot, Prothermo
Cerabar, Deltabar, Prowirl L
Remote display FHX50BEN DA 28/03/202515/10/202410/03/202327/01/202209/04/2021Sprog:
Engelsk
Version:
28/03/2025
Filstørrelse:
612.7 KB
Filnavn:
EA01265FEN_0825-00.pdf
-
-
-
Installationsanvisninger (EA)
EA Dummy plug M20×1.5 G½, NPT ½, NPT ¾
Gammapilot, Liquiphant, Micropilot, Prothermo
Cerabar, DeltabarEN DA 15/07/202419/06/202327/01/202231/07/2020Sprog:
Engelsk
Version:
15/07/2024
Filstørrelse:
538.4 KB
Filnavn:
EA01319FEN_0424-00.pdf
-
Søg i reservedele efter nummer på tegning
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Electronics FEL42, PNP10-55VDC
-
Electronic
TegningsnummerOrdrekode3071432590 -
-
Electronics FEL44, relay DPDT
-
Electronic
TegningsnummerOrdrekode3071432594 -
-
Electronics FEL48 NAMUR
-
Electronic
TegningsnummerOrdrekode3071432595 -
-
Cover Alu, closed
-
Cover
TegningsnummerOrdrekode2071435116 -
-
Cover Alu, closed, Ex d
-
Cover
TegningsnummerOrdrekode2071435118 -
-
Cover plastic, closed
-
Cover
TegningsnummerOrdrekode2071435126 -
-
Cover Alu, sight glass
-
Cover
TegningsnummerOrdrekode2071439089 -
-
Cover plastic, sight window
-
Cover
TegningsnummerOrdrekode2071550061 -
-
Cable gland M20, plastic
-
Screw connection
TegningsnummerOrdrekode1571435135 -
-
Cable gland M20, brass nickel plated
-
Screw connection
TegningsnummerOrdrekode1571435136 -
-
Adapter set M20x1.5-G1/2, Alu
-
Screw connection
TegningsnummerOrdrekode1571440660 -
-
Adapter set M20x1.5-G1/2, plastic
-
Screw connection
TegningsnummerOrdrekode1571462833 -
-
Adapter set M20x1.5-1/2"NPT, plastic
-
Screw connection
TegningsnummerOrdrekode1571462835 -
-
Ground terminal Liquiphant
-
further parts
TegningsnummerOrdrekode1871589844 -
-
Ground term. plastic housing Liquiph. ES
-
further parts
TegningsnummerOrdrekode1871647970 -
-
Ground term. hygiene housing Liquiph. ES
-
further parts
TegningsnummerOrdrekode1871647972 -
-
Cover sealing EPDM, 5 pieces
-
Sealing
TegningsnummerOrdrekode2171435131 -
-
Cover sealing HNBR, -40oC, 5 pieces
-
Sealing
TegningsnummerOrdrekode2171435132 -
-
Housing 2-wire platform Liquiphant
-
further parts
TegningsnummerOrdrekode10XPF0040- -
-
Gasket, graphite 4kt-21.5x31.5x6, 2pcs.
-
further parts
Ordrekode71078875 -
-
Sliding sleeve 100bar G1, 316L
Ordrekode52003663 -
Sliding sleeve 100bar G1, 316L, 3.1
Ordrekode52011880 -
Sliding sleeve 100bar G1-1/2, 316L
Ordrekode52003665 -
Sliding sleeve 100bar G1-1/2, 316L, 3.1
Ordrekode52011882 -
Sliding sleeve 100bar NPT1, 316L
Ordrekode52003667 -
Sliding sleeve 100bar NPT1, 316L, 3.1
Ordrekode52011881 -
Sliding sleeve 100bar NPT1-1/2, 316L
Ordrekode52003669 -
Sliding sleeve 100bar NPT1-1/2, 316L,3.1
Ordrekode52011883 -
Sliding sleeve G1, 316L
Ordrekode52003978 -
Sliding sleeve G1, 316L, 3.1
Ordrekode52011888 -
Sliding sleeve G1-1/2, 316L
Ordrekode52003980 -
Sliding sleeve G1-1/2, 316L, 3.1
Ordrekode52011890 -
Sliding sleeve NPT1, 316L
Ordrekode52003979 -
Sliding sleeve NPT1, 316L, 3.1
Ordrekode52011889 -
Sliding sleeve NPT1-1/2, 316L, 3.1
Ordrekode52011891 -
Sliding sleeve NPT1-1/2, 316L
Ordrekode52003981 -
M12-female plug connec., 100deg,5m cable
Ordrekode52010285 -
M12-female plug connec., 90deg, 5m cable
Ordrekode52024216 -
Weld-in adapter G3/4, d=55, 316L
Ordrekode52001052 -
Weld-in adapter G3/4, d=55, 316L, 3.1
Ordrekode52011897 -
Weld-in adapter G1, d=53, 316L, 3.1
Ordrekode71093129 -
Weld-in adapter G1, d=53, 316L
Ordrekode71258358 -
Weld-in adapter G1, d=60, 316L
Ordrekode52001051 -
Weld-in adapter G1, d=60, 316L, 3.1
Ordrekode52011896 -
Weld-in adapter G1, adjustable, 316L
Ordrekode52001221 -
Weld-in adapter G1, adjustable,316L, 3.1
Ordrekode52011898 -
Weather protection cover, plastic, XW111
Ordrekode71438291
