Oversigt over specifikationer
-
Input
20 analog (max) (U, I, TC, RTD, frequency, pulse)
20 HART (max) (HART, 4…20mA)
14 digital (max) (control, event and counting inputs) -
Output
12 relays (max)
2 analog (max) (I, pulse)
1 transmitter power supply -
Display

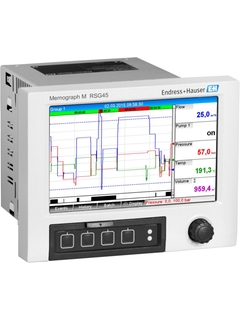

TFT 7" colour graphic display
TFT 7" colour graphic display with touch panel -
Storage/Recording
internal memory
SD card
USB flash drive -
Calculations
Mass/heat quantity
heat quantity difference
Anvendelsesområde

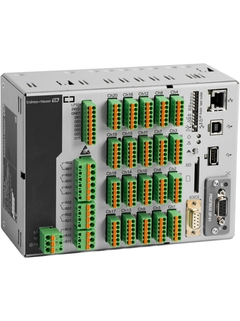

The Advanced Data Manager is a flexible and powerful system for organizing process values. Thanks to its intuitive operation, Memograph M adapts quickly and easily to any application. The process values are clearly presented on the display and logged safely, limits are monitored and analyzed. Via communication protocols, the measured and calculated values can be easily transferred to higher-level systems and plant modules can be interconnected. Also available as DIN rail version without display.
The solution for all your tasks. For example, for:
Process measuring technology
Power stations and energy supply
Steam boiler monitoring/efficiency calculation
Food and pharmaceutical industry
Plant and apparatus engineering and construction; Milk pasteurization plants
Environmental and climate measuring technology; Storm overflow control
Quality assurance and production
Batch analysis; Tele-Alarm functions
iTHERM TrustSens Calibration Monitoring
Testing bays and laboratory applications
Fordele
High degree of data security: tamper-proof data storage and personalized access authorization with electronic signature (FDA 21 CFR 11)
HART input card: HART sensors directly connected provide accurate process values for calculation and logging
HART gateway: time-saving direct access to HART sensors in the field with FieldCare using Memograph M without interrupting the measuring loop

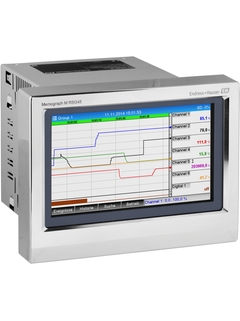

Stainless steel front with touch operation: trouble-free operation in demanding environments such as hygienic or hazardous areas.
DIN rail version: compact device with small dimensions for cabinet mounting or remote field applications.
System capability: supports common fieldbuses (Modbus, Profibus DP, PROFINET, EtherNet/IP) for fast integration into diverse systems
Integrated Web server: remote access to device operation and visualization for lower maintenance costs
WebDAV: files saved on SD card transmitted directly to a PC via HTTP without any additional software.
Videoer
-
Standardprodukter
- Pålidelige og robuste med lav vedligeholdelse
Teknisk ydeevne
Enkelhed
-
Specialiserede produkter
- Designet til krævende applikationer
Teknisk ydeevne
Enkelhed
Variabel
| FLEX valg | Teknisk ydeevne | Enkelhed |
|---|---|---|
Fundamental Få dækket dine basale målebehov |
Teknisk ydeevne
|
Enkelhed
|
Lean Administrer nemt dine kerneprocesser |
Teknisk ydeevne
|
Enkelhed
|
Extended Optimer dine processer med innovative teknologier |
Teknisk ydeevne
|
Enkelhed
|
Xpert Til de mest udfordrende applikationer |
Teknisk ydeevne
|
Enkelhed
Variabel |
Loading alternative products
Forgænger
Succeshistorier
Måske også interessant for dig
Mest downloadede
-
-
Tekst til tilbudsgivning
Memograph M RSG45
Tysk version - 07/2016
Graphic Data Manager mit 7“ TFT Farbgrafikdisplay für das Anzeigen, Überwachen, Analysieren und Speichern von Multifunktionseingänge
Sprog:
Tysk
Version:
07/07/2016
Filstørrelse:
28 KB
Filnavn:
TTRSG45DE.doc
-
-
-
Tekniske oplysninger (TI)
Memograph M, RSG45
Engelsk version - 09/2021
Advanced Data Manager
EN DA 21/09/202130/07/201831/03/201631/08/2015Sprog:
Engelsk
Version:
21/09/2021
Filstørrelse:
7.3 MB
Filnavn:
TI01180REN_0421.pdf
-
143 dokumenter
-
-
Tekniske oplysninger (TI)
Memograph M, RSG45
Advanced Data Manager
EN DA 21/09/202130/07/201831/03/201631/08/2015Sprog:
Engelsk
Version:
21/09/2021
Filstørrelse:
7.3 MB
Filnavn:
TI01180REN_0421.pdf
-
-
-
Betjeningsvejledning (BA)
Memograph M, RSG45
Advanced Data Manager
Additional Instructions for Modbus RTU/TCP SlaveEN DA 30/09/202201/10/2015Sprog:
Engelsk
Version:
30/09/2022
Filstørrelse:
4.7 MB
Filnavn:
BA01388REN_0222-00.pdf
-
-
-
Betjeningsvejledning (BA)
BA Memograph M, RSG45
Advanced Data Manager
Additional instructions for PROFINET deviceEN DA 31/07/202315/12/202203/09/201805/07/201601/10/2015Sprog:
Engelsk
Version:
31/07/2023
Filstørrelse:
6.3 MB
Filnavn:
BA01415REN_0523-00.pdf
-
-
-
Betjeningsvejledning (BA)
Memograph M, RSG45
Advanced Data Manager
EN DA 21/09/202103/09/201822/12/201714/12/201610/05/2016Sprog:
Engelsk
Version:
21/09/2021
Filstørrelse:
14.1 MB
Filnavn:
BA01338REN_0721.pdf
-
-
-
Betjeningsvejledning (BA)
iTHERM TrustSens Calibration Monitoring
Memograph M RSG45 in connection with iTHERM TrustSens TM37x and the
Field Data Manager (FDM) softwareEN DA 15/12/202230/11/2018Sprog:
Engelsk
Version:
15/12/2022
Filstørrelse:
2.7 MB
Filnavn:
BA01887REN_0222-00.pdf
-
-
-
Betjeningsvejledning (BA)
Memograph M, RSG45
Advanced Data Manager
Wastewater + RSB (rain spillway basin) option
Additional functions for water/wastewater softwareEN DA 29/12/202201/10/2015Sprog:
Engelsk
Version:
29/12/2022
Filstørrelse:
3.7 MB
Filnavn:
BA01337REN_0222-00.pdf
-
-
-
Betjeningsvejledning (BA)
Memograph M, RSG45
Advanced Data Manager
Additional Instructions: Telealarm option for alarm messagesEN DA 22/12/202201/10/2015Sprog:
Engelsk
Version:
22/12/2022
Filstørrelse:
4.5 MB
Filnavn:
BA01387REN_0222-00.pdf
-
-
-
Betjeningsvejledning (BA)
FDM Field Data Manager Software MS20, MS21
Data management and visualization
EN DA 04/10/202127/07/202109/05/201916/05/201724/03/2016Sprog:
Engelsk
Version:
04/10/2021
Filstørrelse:
5.9 MB
Filnavn:
BA00288R09EN_1221.pdf
-
-
-
Betjeningsvejledning (BA)
Memograph M, RSG45
Advanced Data Manager
Additional Instructions for EtherNet/IP<sup>®</sup> AdapterEN DA 30/11/202204/10/201601/06/2016Sprog:
Engelsk
Version:
30/11/2022
Filstørrelse:
8.1 MB
Filnavn:
BA01413REN_0322-00.pdf
-
-
-
Betjeningsvejledning (BA)
Memograph M, RSG45
Advanced Data Manager
Additional Instructions for Energy Option
Mass and energy calculation in water and steam applicationsEN DA 28/10/202201/10/2015Sprog:
Engelsk
Version:
28/10/2022
Filstørrelse:
5.9 MB
Filnavn:
BA01412REN_0222-00.pdf
-
Søg i reservedele efter nummer på tegning
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Jack screw short (1 piece)
-
further parts
Ordrekode71035184 -
-
Terminal strip 6 pole FMC1,5/6-ST-3,5
-
further parts
Ordrekode51009211 -
-
Terminal strip 9 pole FMC1,5/9-ST-3,5
-
further parts
Ordrekode71037363 -
-
Terminal strip 3 pole FKC2,5/3-ST-5,08
-
further parts
Ordrekode71037408 -
-
Terminal strip 4 pole FKC2,5/4-ST-5,08
-
further parts
Ordrekode71037410 -
-
Terminal strip 6 pole FKC2,5/6-ST-5,08
-
further parts
Ordrekode71037411 -
-
Terminal plug 3pole "N L PE" pitch 5.08
-
further parts
Ordrekode71123475 -
-
Terminal strip 4pole FMC1,5/4-ST-3,5
-
further parts
Ordrekode71037350 -
-
Terminal strip 10 pole FMC1,5/10-ST-3,5
-
further parts
Ordrekode71037351 -
-
Terminal strip 4 pole FKC2,5/4-ST-5,08
-
further parts
Ordrekode71037410 -
-
Terminal plug 3pole "L N PE" pitch 5.08
-
further parts
Ordrekode71296182 -
-
Connection board backside RSG45 DIN rail
-
further parts
Ordrekode71412098 -
-
Memorycard SD 1GB neutral
-
further parts
Ordrekode71187780 -
-
CPU + Software RSG45
-
Electronic
TegningsnummerOrdrekodeFXPR0013- -
-
Spare Parts RSG45
-
further parts
OrdrekodeXPR0011- -
-
Field Data Manager Software MS20
-
further parts
OrdrekodeMS20- -
-
Field Data Manager Software MS21
-
further parts
OrdrekodeMS21- -
-
Service
OrdrekodeDIENST- -
Software RSG45 (release code)
OrdrekodeXPR0012- -
Accessories RXU10
OrdrekodeRXU10-
