Oversigt over specifikationer
Input
2 x universal (U, I, R, RTD, TC)
Output
2 x analogue output (I, U) 1 x loop power supply
Display
Multicolor backlight LCD White/black/yellow Bargraph Unit TAG Alarm warning in plain text
Anvendelsesområde
Analog measured values are indicated, evaluated and calculated by the process meter. With the integrated loop power supply two-wire sensors can be powered. The universal inputs enable the connection of current, voltage, RTDs and TCs. Limit values can be monitored and relays can be switched. Via analog outputs process signals can be forwarded. The integrated application package "differential pressure" allows the quick and easy commissioning for differential pressure applications.

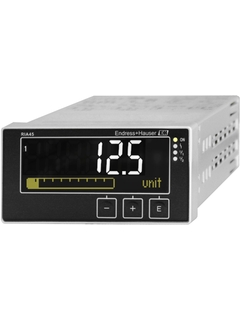

The RIA45 panel meter exhibits a display, analog inputs for process and status signals, analog and digital outputs, and an interface for configuration. Connected sensors can be powered by the integrated LPS. All measured and calculated values are available as a signal source for display, outputs, relays and the interface.
Plant and apparatus engineering and construction
Control rooms and cabinets
Laboratories
Process recording and supervision
Process control
Signal adjustment and conversion
Fordele
5-digit 7-segment LC display, backlit
1 or 2 universal inputs
2 relays (optional)
Min./max. value saved
1 or 2 calculated values and linearization table
Digital status output (Open Collector)
SIL2 approval (optional); marine approval
Lean
Standardprodukter
Pålidelige og robuste med lav vedligeholdelse
Teknisk ydeevne
Enkelhed
©Endress+Hauser
Enkle produkter
Nemme at vælge, installere og betjene
Teknisk ydeevne
Enkelhed
Standardprodukter
Pålidelige og robuste med lav vedligeholdelse
Teknisk ydeevne
Enkelhed
Avancerede produkter
Funktionelle og praktiske
Teknisk ydeevne
Enkelhed
Specialiserede produkter
Designet til krævende applikationer
Teknisk ydeevne
Enkelhed
FLEX valg
Teknisk ydeevne
Enkelhed
Fundamental
Få dækket dine basale målebehov
Teknisk ydeevne
Enkelhed
Lean
Administrer nemt dine kerneprocesser
Teknisk ydeevne
Enkelhed
Extended
Optimer dine processer med innovative teknologier
Teknisk ydeevne
Enkelhed
Xpert
Til de mest udfordrende applikationer
Teknisk ydeevne
Enkelhed
Loading alternative products
Measuring principle
Indicators with control unit
Measuring principle
Process meter with control unit
Function
Display Loop power supply Transmitter functionality Barrier Signal isolation Calculation Limit alarm
Display
Multicolor backlight LCD White/black/yellow Bargraph Unit TAG Alarm warning in plain text
Input
2 x universal (U, I, R, RTD, TC)
Software functions
Linearization Minimum value per channel Maximum value per channel Calculation Band value monitoring
Certificates
ATEX II(1)GD [Ex ia] IIC CSA General Purpose CSA AIS, NI/I/2/ABCDEFG/T4 FM AIS, NI/I/2/ABCDEFG/T4 TIIS [Ex ia] IIC NEPSI [Ex ia] IIC UK II(1)G [Ex ia Ga] IIC, II(1)D [Ex ia Da] IIIC marine certificate
Function
Display Loop power supply Transmitter functionality Barrier Signal isolation Calculation Limit alarm
Certification
ATEX II (1)GD[Ex ia] 4C CSA AIS, NI/I/2 ABCDEFG/T4 FM AIS, NI/I/2 ABCDEFG/T4 Marine approval UR C/US
Input
2 x universal (U, I, R, RTD, TC)
Output
2 x analogue output (I, U) 1 x loop power supply
Relay output
2 x changeover contact 1 x open collector
Auxiliary power supply / Loop power supply
Dimensions (wxhxd)
Panel housing: 96 x 48 x 175 mm (3.78" x 1.89" x 6.89")
Software
Linearization Minimum value per channel Maximum value per channel Calculation Band value monitoring
Operation
3 keys Interface CDI to USB at PC + configuration software FieldCare
Display
Multicolor backlight LCD White/black/yellow Bargraph Unit TAG Alarm warning in plain text
Mest downloadede
RIA45
Engelsk version - 06/2022
Process indicator
EN
DA
CS DE ES FR IT JA PL PT RU ZH
30/06/2022
10/03/2016
15/10/2015
25/04/2014
30/01/2014
Sprog:
Engelsk
Version:
30/06/2022
Filstørrelse:
1.5 MB
Filnavn:
BA00272REN_0722-00.pdf
Device viewer
Engelsk version - 07/2021
Technical documentation in other languages
Sprog:
Engelsk
Version:
14/07/2021
Filstørrelse:
478.5 KB
Filnavn:
SD02429R09EN_0121.pdf
50 dokumenter
EN
DA
Tysk Spansk French Italiensk Japansk Polsk Portugisisk Russisk Kinesisk
30/06/2022
10/03/2016
02/11/2015
25/04/2014
29/10/2012
Sprog:
Engelsk
Version:
30/06/2022
Filstørrelse:
753.8 KB
Filnavn:
TI00141REN_0622-00.pdf
EN
DA
Tjekkisk Tysk Spansk French Italiensk Japansk Polsk Portugisisk Russisk Kinesisk
30/06/2022
10/03/2016
15/10/2015
25/04/2014
30/01/2014
Sprog:
Engelsk
Version:
30/06/2022
Filstørrelse:
1.5 MB
Filnavn:
BA00272REN_0722-00.pdf
EN
DA
Bulgarsk Tjekkisk Tysk Græsk Spansk Estisk Finsk French Kroatisk Ungarsk Indonesisk Italiensk Japansk Koreansk Lithuanian Latvian Hollandsk Norsk Polsk Portugisisk Rumænsk Russisk Slovakisk Slovensk Svensk Thai Tyrkisk Kinesisk
30/06/2022
21/11/2018
15/10/2015
30/01/2015
04/10/2012
Sprog:
Dansk
Version:
30/06/2022
Filstørrelse:
870.8 KB
Filnavn:
KA00271RDA_1722-00.pdf
ATEX: II (1)G [Ex ia Ga] IIC II(1)D [Ex ia Da] IIIC
EN
DA
Bulgarsk Tjekkisk Tysk Græsk Spansk Estisk Finsk French Kroatisk Ungarsk Italiensk Lithuanian Latvian Hollandsk Polsk Portugisisk Rumænsk Slovakisk Slovensk Svensk
27/06/2022
04/11/2016
15/04/2010
18/12/2008
Sprog:
Dansk
Version:
27/06/2022
Filstørrelse:
483.2 KB
Filnavn:
XA00076RDA_1422-00.pdf
CSA: Control Drawing AIS, ANI 120300112
Sprog:
Engelsk
Version:
08/06/2010
Filstørrelse:
163.3 KB
Filnavn:
120300112.pdf
FM: Control Drawing AIS, ANI 120300111
Sprog:
Engelsk
Version:
03/06/2009
Filstørrelse:
167.4 KB
Filnavn:
120300111.pdf
Control Drawing CSA AIS RIA45
Display with Control Functions RIA45 Installation Notes for hazardous locations
Sprog:
Engelsk
Version:
08/04/2010
Filstørrelse:
278.3 KB
Filnavn:
120300112.pdf
Control Drawing FM approval AIS, ANI RIA45
Display with Control FunctionsRIA45 Installation Notes for hazardous locations
Sprog:
Engelsk
Version:
08/04/2010
Filstørrelse:
257.9 KB
Filnavn:
120300111.pdf
Technical documentation in other languages
Sprog:
Engelsk
Version:
14/07/2021
Filstørrelse:
478.5 KB
Filnavn:
SD02429R09EN_0121.pdf
Functional Safety Manual RIA45
Functional safety manual for SIL2 certification of process meter RIA45
EN
DA
Tysk
07/02/2019
15/02/2017
08/04/2014
23/07/2012
15/06/2009
Sprog:
Engelsk
Version:
07/02/2019
Filstørrelse:
690.4 KB
Filnavn:
SD00014REN_1619.pdf
Søg i reservedele efter nummer på tegning
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
Cover clamp EX protection W07
Tegningsnummer
Ordrekode
3
71069920
Housing front + foil, incl. keyboard
Tegningsnummer
Ordrekode
1
RIA45X-DA
Thread rod tube fixing 105mm
Tegningsnummer
Ordrekode
14
71081257
Tegningsnummer
Ordrekode
8
RK01-AG
Main board, non Ex, Weidmüller power supply terminal 24-230V (-20%+10%) DC/AC
Tegningsnummer
Ordrekode
5
RIA45X-NA
Main board, Ex, Weidmüller Netzklemme 24-230V (-20%+10%) DC/AC
Tegningsnummer
Ordrekode
5
RIA45X-NB
Main board, non Ex, Phoenix power supply terminal 24-230V (-20%+10%) DC/AC
Tegningsnummer
Ordrekode
5
RIA45X-NC
Main board, Ex, Phoenix power supply terminal 24-230V (-20%+10%) DC/AC
Tegningsnummer
Ordrekode
5
RIA45X-ND
Input card universal, channel 2, non Ex + analog output
Tegningsnummer
Ordrekode
6
RIA45X-IA
Input card universal, channel 2, Ex + analog output, Ex ia, IS FM, IS CSA
Tegningsnummer
Ordrekode
6
RIA45X-IB
Relay board + 2 limit relays
Tegningsnummer
Ordrekode
7
RIA45X-RA
Terminal plug-in 3pol.for power supply
Tegningsnummer
Ordrekode
9
50078843
Terminal plug 3pole "N L PE" pitch 5.08
Tegningsnummer
Ordrekode
9
71123475
Terminal plug 3pole "L N PE" pitch 5.08
Tegningsnummer
Ordrekode
9
71296182
Terminal strip 4pole FMC1,5/4-ST-3,5
Tegningsnummer
Ordrekode
10
71037350
Terminal strip 3 pole FKC2,5/3-ST-5,08
Tegningsnummer
Ordrekode
13
71037408
Terminal strip 4pole space3.5 Ex codiert
Tegningsnummer
Ordrekode
10
71074564
Terminal strip 4pole space3.5 Ex codiert
Tegningsnummer
Ordrekode
10
71074567
Terminal strip 4pole space 3.81 non Ex
Tegningsnummer
Ordrekode
12
71075062
Terminal plug 2pole space3.81 spring
Tegningsnummer
Ordrekode
11
71075063
Terminal plug 3pole "R12 R11 R13"RM5.08
Tegningsnummer
Ordrekode
13
71296188
Terminal plug 3pole "R22 R21 R23"RM5.08
Tegningsnummer
Ordrekode
13
71296190
Tegningsnummer
Ordrekode
4
RIA45T-
