Compact sanitary RTD - iTHERM TrustSens TM371

iTHERM TrustSens TM371
Compact thermometer

Name: iTHERM TrustSens TM371
Brand: Endress+Hauser
Availability: InStock

Metric RTD thermometer with self-calibration technology for hygienic applications

TM371

Sammenligne

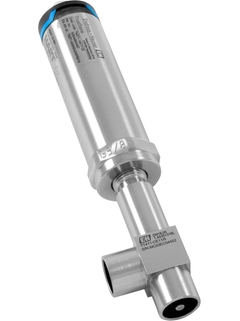

Sanitary RTD TrustSens TM371 with elbow thermowell in hygienic design — Sanitary RTDs, such as the compact TrustSens TM371 temperature measurement device, are available with special TT411 elbow thermowells in hygienic design for clean processes and accurate measurements

iTHERM TrustSens TM371, winner of the HERMES AWARD 2018 — Our sanitary resistance thermometer is recognized by numerous industry awards for its breakthrough technology, including the prestigious HERMES AWARD

Self-calibrating hygienic resistance thermometer with iTHERM QuickNeck — iTHERM TrustSens - innovative thermometer designed for food & beverage and life sciences industries

Sanitary RTD iTHERM TrustSens TM371 with self-calibrating function — Temperature measurement is a critcal part of sterile process applications. iTHERM TrustSens supports automation of product safety and compliance.

Green status LED of the sanitary RTD probe TrustSens TM371 — iTHERM TrustSens - The award-winning thermometer for all hygienic and aseptic applications

Compact sanitary RTD - iTHERM TrustSens TM371 with self-calibrating Pt100 sensor and iTHERM QuickNeck quick-release neck for fast insert removal

Oversigt over specifikationer

Response time

t50 = 2.5 s
t90 = 5.4 s
Max. process pressure (static)

at 20 °C: 40 bar (580 psi)
Operating temperature range

Pt100:
-40 °C to 160 °C (-40 °F to 320 °F),
optional up to 190 °C (374 °F)
reference point for automated calibration
Max. immersion length on request

up to 900.00 mm (35.4'')

Se alle specifikationer

Anvendelsesområde

Our award-winning iTHERM TrustSens TM371 sanitary RTD features the world's first self-calibrating Pt100 sensor unit! The hygienic temperature transmitter with Heartbeat Technology effectively eliminates the risk of undetected non-conformities, reduces production downtime while increasing product safety and process efficiency in food, beverage and life sciences applications. The instrument complies with FDA and GMP regulations and integrates with the Netilion cloud-based Industry 4.0 ecosystem.

Designed for critical hygienic / aseptic applications in life sciences, food & beverage
RTD self-calibration in processes such as SIP, UHT, edible oil refining, industrial deep fat frying
Measuring range: -40 to 190 °C (-40 to 374 °F)
Protection class: IP65/67 or IP69
Signal output: 4 to 20 mA, HART®
Optional: Secure Bluetooth® and/or WirelessHART® (requires FieldPort SWA50)
EHEDG, ASME BPE, FDA, 3-A, 1935/2004, 2023/2006, 10/2011, CE, CRN, CSA General Purpose, Explosion protection, e.g. ATEX/IECEx

Fordele

Reduce risks and costs by implementing fully automated, traceable inline RTD sensor self-calibration; Eliminate non-conformities or undetected failures
True RTD sensor self-calibration making use of the Curie effect; Built-in, long-term stable fix point reference with complete traceability of calibration chain to ITS-90
Full instrument diagnostics, monitoring and verification with Heartbeat Technology
Automated process documentation, built-in memory for 350 calibration events; 24/7 access to printable, audit proof calibration certificates, on-site or through cloud-based system integration
Built-in 4 to 20 mA loop check function saves time and increases process safety
Highest temperature measurement precision: individual transmitter-sensor matching from factory for improved RTD accuracy

Videoer

iTHERM TrustSens TM371 sanitary RTD: The world's first self-calibrating hygienic temperature transmitter
How to perform a fully automated, inline 4 to 20 mA loop check in five easy steps
Lower risk and drive automation in regulated processes using iTHERM TrustSens TM371
